Hi Wooshin, Please deliver 2 pcs of RCU(KR01) to us so that we can add key code in mapping table and test/verify if it's OK in advance before releasing modification. Thanks~ |
|
|
Hi Jacky, I have gotten 2 samples. I will send them at next Monday. Thanks. |
|
|
Hi, Jacky We will send you today. We didn't send at Monday because it need to some documents for sending(Ex. Battery) Best regards Lonnie Kim |
|
|
Hi Lonnie, OK, no problem. Please give me tracking number after you send out the samples. Thanks & Best Regards, Jacky |
|
|
Hi Jacky Here is Fedex tracking number 7761 7971 4760 and attached invoice Thanks SON |
|
2022-03-03 18:05 developer |
|
|
|
Hi SH, Lonnie, I received 2 pcs of samples yesterday afternoon. Thanks, Jacky |
|
|
Hi Wooshin, I saw the ID of KR01 RCU but I found it seems not to meet Google ATV RCU requirements, ex: home, Google Assistant keys. May I know what's scenarios for KR01 and do SKB ever contact Google ATV team to introduce KR01? Thanks, Jacky |
|
|
Hi Jacky, Yes i agree with your opinion but it will be discussed between SKB and GOOGLE. So we need to do below test using this RUC. 1. IR is working 2. Pairing 3. BT key is working. And SPTEK ( M/W company) is working for 2 RCU Pairing. |
|
|
Hi Wooshin, Does the KR01 need to support iSet? (I didn't see any IR button on RCU for controlling TV). |
|
|
You don't need to test iset at now thanks. |
|
|
Hi, Jason Did you finish to test ? If you can release test version, inform me. Thanks |
|
|
Hi Wooshin, Any update on the comments below? >> I saw the ID of KR01 RCU but I found it seems not to meet Google ATV RCU requirements, ex: home, Google Assistant keys. >> May I know what's scenarios for KR01 and do SKB ever contact Google ATV team to introduce KR01? |
|
|
Hi Jason, I saw the ID of KR01 RCU but I found it seems not to meet Google ATV RCU requirements, ex: home, Google Assistant keys. -> Yes it is not to meet Google ATV RCU requirement. but SKB want to test it. May I know what's scenarios for KR01 and do SKB ever contact Google ATV team to introduce KR01? -> There is specification of RCU on https://jira.skbroadband.com/browse/BTVD-19540. Please get the help form Brent. We have to release firmware to SKB for testing RCU ( BT keys and IR keys) after testing in our side. 1. pairing 2. IR keys 3. BT keys Thanks. |
|
|
Hi Wooshin, Test image http://altserver01.iptime.org/release_by_fxn/tmp/swan_rcukr01/usb_bfx-ua300_V19.532.17_SD.zip BFX-UA300:/ # su BFX-UA300:/ # getprop ro.vendor.vasott.version v532kr01-20220315 |
|
|
Hi Jason, I need ND and SD images and version should be 19.532.917. Please release them. Also I need also firmware(ND/SD) for SMART3 Version should be 15.532.921. Thanks. |
|
|
Hi Wooshin, For SWAN http://altserver01.iptime.org/release_by_fxn/swan_test_image/19.532.927/ Thanks, |
|
|
Hi Jason, SKB tested your firmware simply and they found some issues. Eagle and SWAN case, Mic_open for NUGU. -> If KR01 is connected before connecting Main RCU, mic_open() command for NUGU (when user press NUGU button on main RCU) go to KR01. Mic_open() command has to go Main RCU. SWAN Connection interval is not set to 10 ms. When KR01 requests to set 10 ms for connection interval time, it is not set on Swan side. thanks |
|
|
Hi Wooshin, For question 2: >>SWAN >>Connection interval is not set to 10 ms. When KR01 requests to set 10 ms for connection interval time, it is not set on Swan side. I also compared the packet flow on the BA02 RCU via btsnoop. They are the same. Is there any connection issues? |
|
|
Hi Jason, Please check attached file. I think you can understand if you check it. Connection Parameter Update is not set. https://jira.skbroadband.com/browse/BTVD-19540 Thanks. 스크린샷 2022-03-22 오전 9.53.14.png (192,212 bytes) |
|
|
Do you have any updates ? |
|
|
Hi Wooshin, Already resolved. Patch for opening wrong Mic 2022-03-24 15:31:19 | jason.tf.ling@fii-.. | 6cede17 | vendor/foxconn | Fixed the behavior of triggering NUGU mic in RCU KR01 and Main Patch for wrong connection interval of KR01 2022-03-22 17:04:34 | jason.tf.ling@fii-.. | 5d602a8 | device/synaptics/sequoia | Set connection interval as 10 for KR01 Thanks, Jason |
|
|

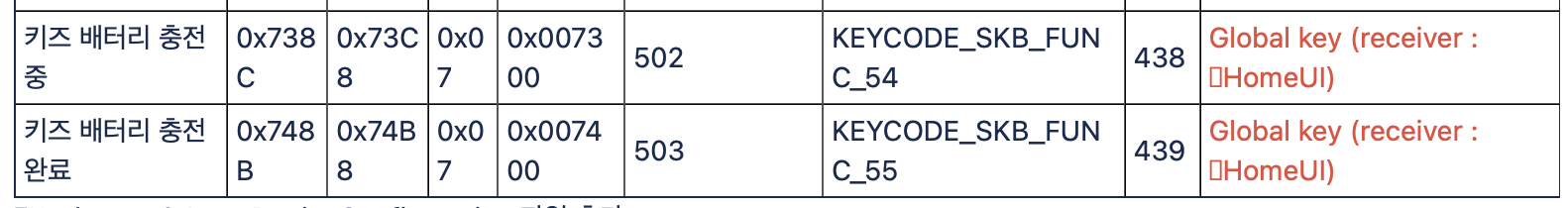

Hi, Jason, Could you please add two key code for Kids RCU? Please refer to the below picture. Thank you. |
|
|
|
|
This feature should be applied SWAN and EAGLE both. |
|
|
Spec document has uploaded. And, the new keys are generated when the battery event happens. So, the kids rcu's firmware should be upgraded to test this keys, but the firmware is not ready yet. Please apply the key code first, and I will let you know when the rcu's firmware is ready. |
|
|
Hi Sangmin, Done, in UI534 branch (Eagle/Swan) |
|
|
Hi, Jason, Thank you, I will test it when I get the rcu firmware. There is one more issue with kids rcu. After pairing the kids rcu, when you keep pressing MIC button, key release event happened even though I kept pressing the button. I checked following message is the cause. BFX-UA300:/ # dmesg -c [78250.135256] --> skbrm_raw_event: id=0x80, size=4, data= 80 00 71 00 [78250.135263] key down 504 [78251.676538] button_auto_up enter, key=504 [78251.676594] button_auto_up leave [78257.495349] --> skbrm_raw_event: id=0x80, size=4, data= 80 00 ff ff [78257.495357] key up 504\x0a BFX-UA300:/ # Could you please check this issue? Thank you. |
|
|
Hi Sangmin, Please download this SD test FW form this link: (For SMART3) https://drive.google.com/file/d/1yUrsQSdzfyHzv91hVaPCuCV8Xnbqt0SS/view?usp=sharing Jerry |
|
|
Hi, Jerry, It's possible to test this firmware next Monday due to moving the office. I will let you know the result next week. Thank you. |
|
|
Hi, Jerry, Could you please the reason why key release event was happened? |
|
|
Hi Sangmin, I learned from Jim that there is a test for long press on the remote control, it defines some keys do not fire keydown repeatly . So there is no need to do autoup function. For example like mic key / dpad_center key / assit key.. Jerry |
|
|
Hi, Jerry, I checked this issue was fixed with your test firmware. Could you please push this commit to UI 534 branch of Smart3 and UI 534 branch of AI Sound Max? And, please add "BPM-321" to the commit message. Thank you. |
|
|
Hi Sangmin, Smart3 (Done) AI SoundMax (Done) |
|
|
Hi, Jason, Thank you for all support. Could you please add same keys(KEYCODE_SKB_FUNC_54, KEYCODE_SKB_FUNC_55) to UHD4 UI 534 branch? These keys are not used for UHD4, but we want to keep the source code same. |
|
|
Hi Sangmin, commit finish Jerry |
|
|
Thank you. |
|
|
Hi, Jerry, Please add KR01 RCU to UHD4 UI5.3.4 branch. UHD4 doesn't support KR01 RCU, but YK Jung want to sync the status of RCU support. Please also apply the last commit of KR01 from SWAN. You can ask to Jason. Thank you. |
|
|
done |
